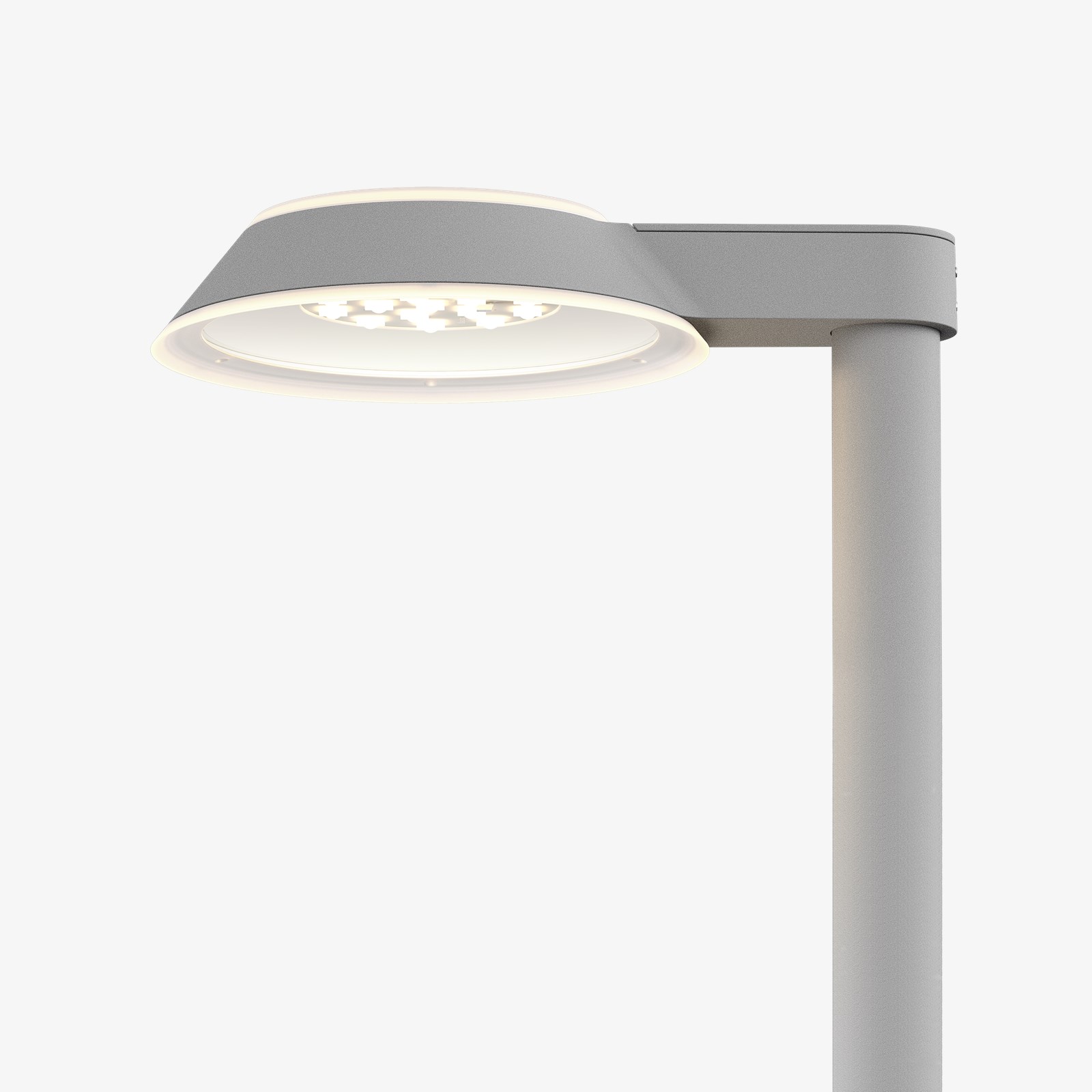

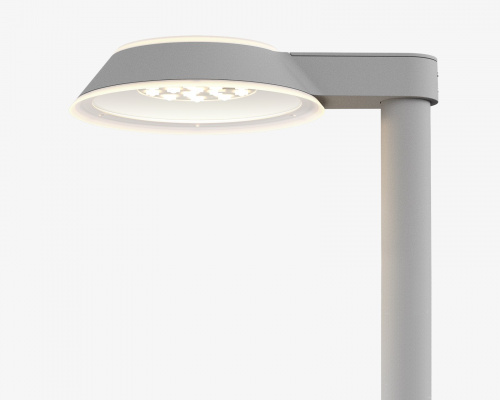

The fixture provides direct downward illumination and is self-illuminating. The fixture is available in two variants; an uplight and a no uplight version. Light distribution round symmetrical (T5) or asymmetrical (T3). It emphasizes the shape of the luminaire and creates ambience and comfort.
Surge protection device (SPD) not included, but available on request. LED replacement kit available. Dimming options: DALI, CLO, and night time dimming (default setting: 50% power in 8 hours). All variants available with Zhaga socket for Smart City compatibility. Including CLO and night time dimming options. All versions are also available for a Ø76mm stub on request. Please contact Louis Poulsen for 2700K and more info about supported Light Management Systems
Materials
Lower diffuser: Injection molded opal acrylic. Lower glass: Plate of clear polycarbonate. Upper diffuser: Injection molded opal acrylic. Housing: Die cast aluminum. Base: Die cast aluminum.
Light source
Light source LED 3000K 17W
Lumen: 1746
Mounting
Pole dimension: Ø 60 mm. Transition piece available for pole Ø 76 mm and Ø 115 mm. Installation cable: 4m 5x1mm² (Class I) or 4m 4x1mm² (Class II). Driver and plug for easy maintenance placed inside the post top.
Sizes and weights

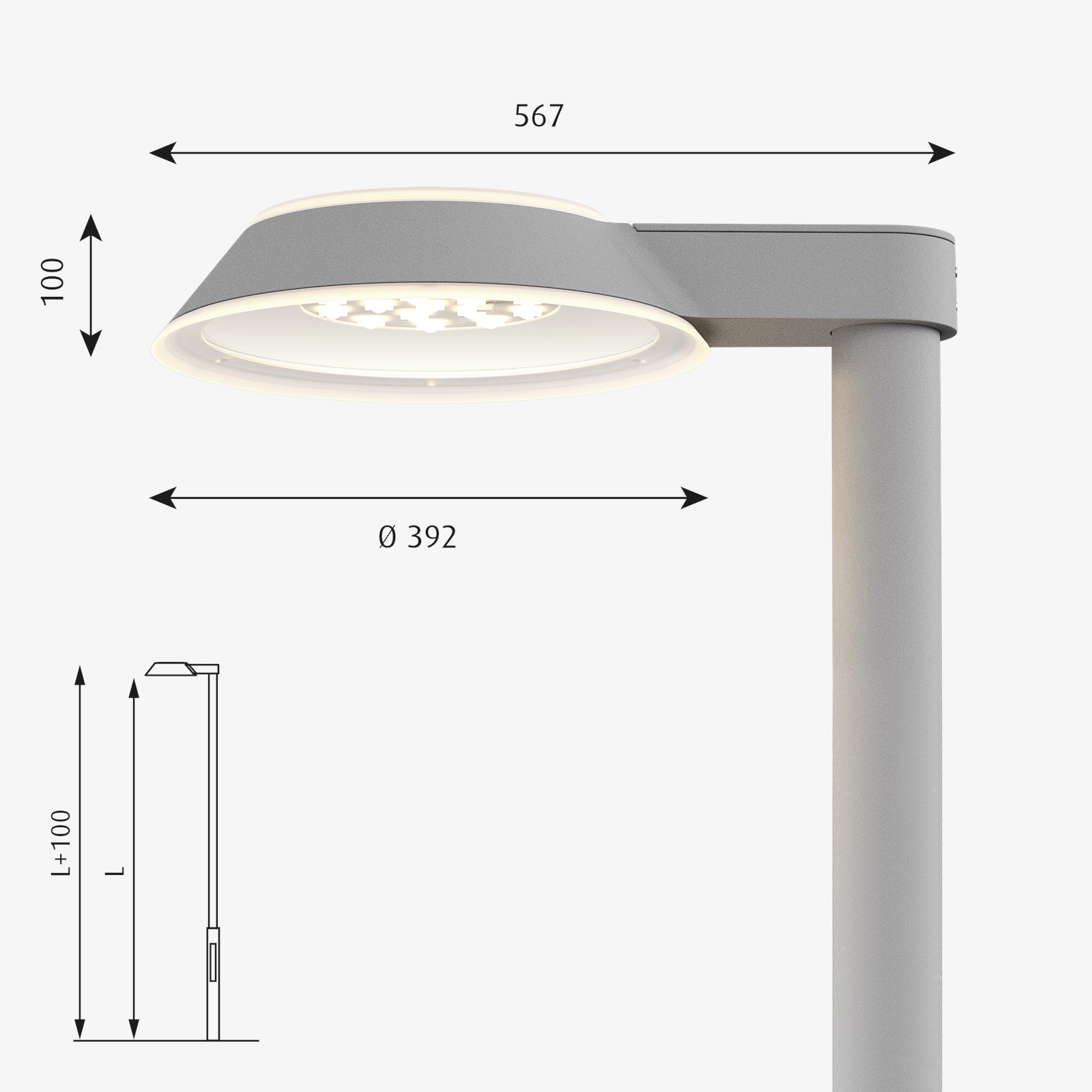

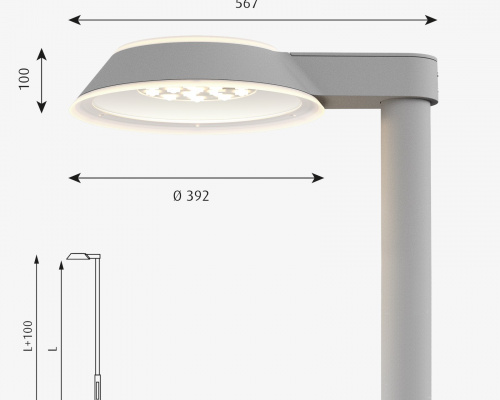

Width x Height x Length (mm)
392 x 100 x 567 Max 7.3 kg
392 x 100 x 678 Max 7.6 kg
Finish
Natural painted aluminum, powder coated.
Class
Ingress protection IP66. Electric shock protection I w. ground, II w/o ground. IK10.
