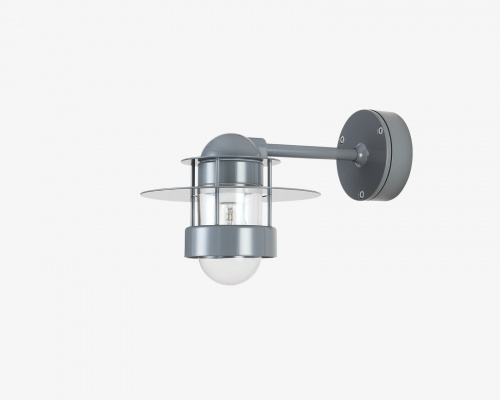

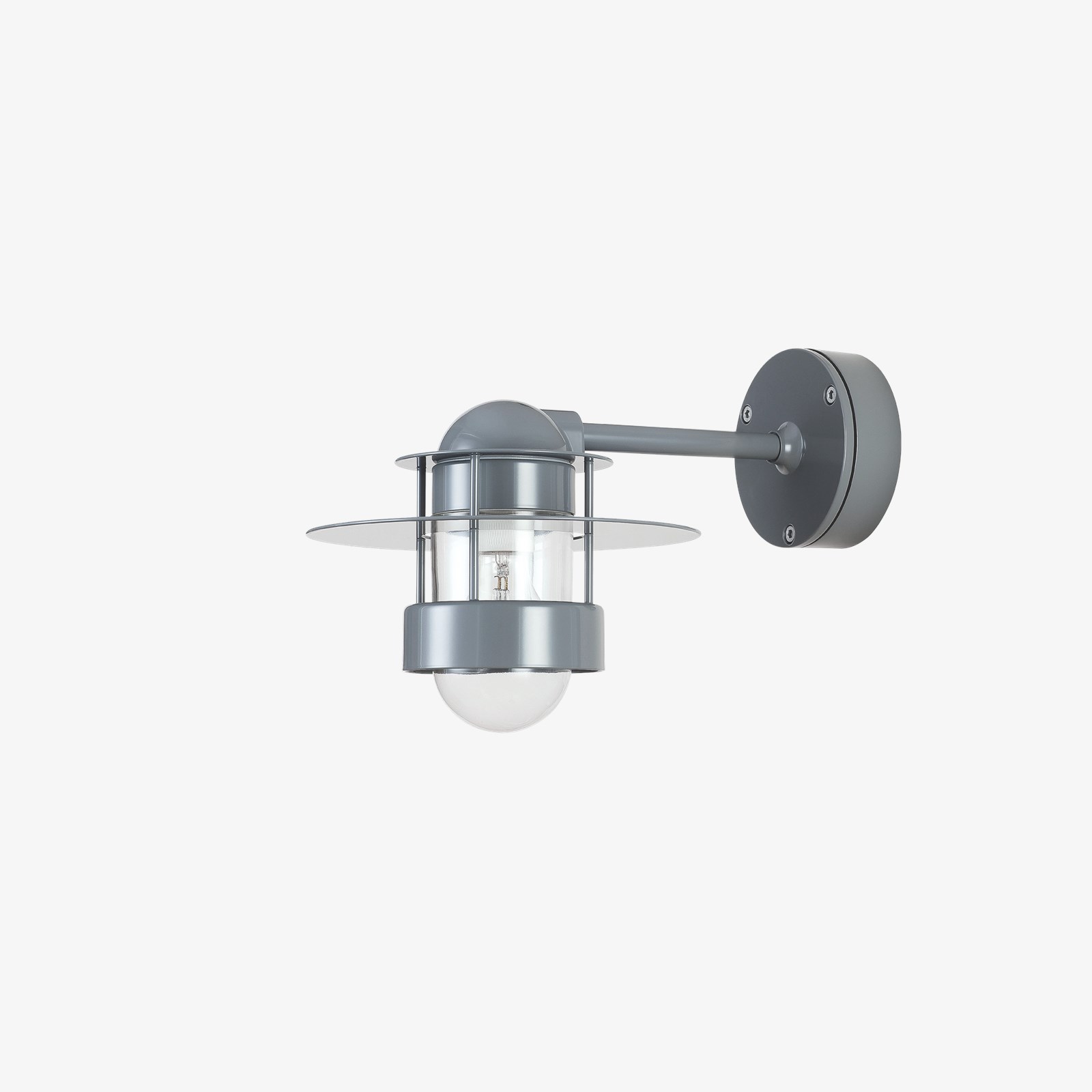

The fixture provides characteristic symmetrical and functional lighting. The horizontal ring reflects the light downwards, but its position also allows some light to slip past and illuminate the fixture itself. The anti-glare ring prevents from horizontal glare, and the diffuser is available either as clear or partly frosted glass, depending on the desired light source.
Environmental Product Specification
This product is compliant with the requirements contained in the European Directives, RoHS Directive 2011/65 and 2015/863. This product is designed so that 100% of the product can be disassembled and reused.
Information
The control gear is placed in the wall box. Please note that the top, wall box and arm appears in natural
aluminium surface for the versions with galvanised shades. Both natural luminium and galvanised surfaces will oxidize during time. This can result in an inconsistent surface finish during oxidation. This process might have begun already during stocking/transportation.
Mounting
Terminal block: 1x3x2.5mm². Cable entries: 2x rear entries for cable Ø 10-14.5mm and 2x bottom knockouts Ø 15mm. Looping: Approved, max. 3x1,5mm². Ballast positioning: In wall box.
Finish
Galvanized, grey or white, powder coated.
Materials
Enclosure: Clear glass or partly frosted glass. Saturn ring: Punched aluminium or galvanized, punched steel. Anti glare ring: Spun aluminium or galvanized, extruded steel. Housing: Die cast aluminium. Wall box: Die cast aluminium. Arm: Extruded aluminium.
Sizes and weights
Width x Height x Length (mm) | 415 x 220 x 270 Max 3.2 kg | 515 x 220 x 270 Max 3.3 kg
Class
Ingress protection IP44. Electric shock protection I w. ground. IK06.
Specification notes
TC-TEL version is supplied with partly frosted glass enclosure to avoid undesireable glare. Incandescent version is supplied with clear glass enclosure. The innovation of light sources is ongoing. Consequently we only inform about the max. wattages. On www.louispoulsen.com we update a list of recommendable light sources.
Light source
1x100W E27
