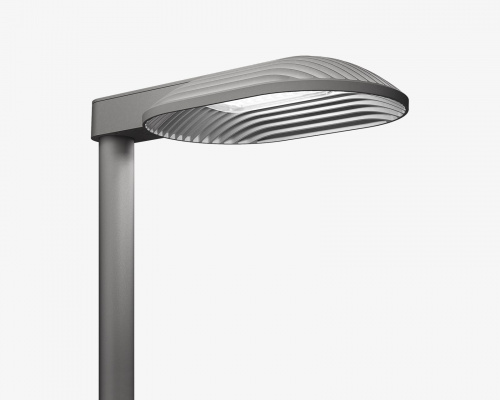

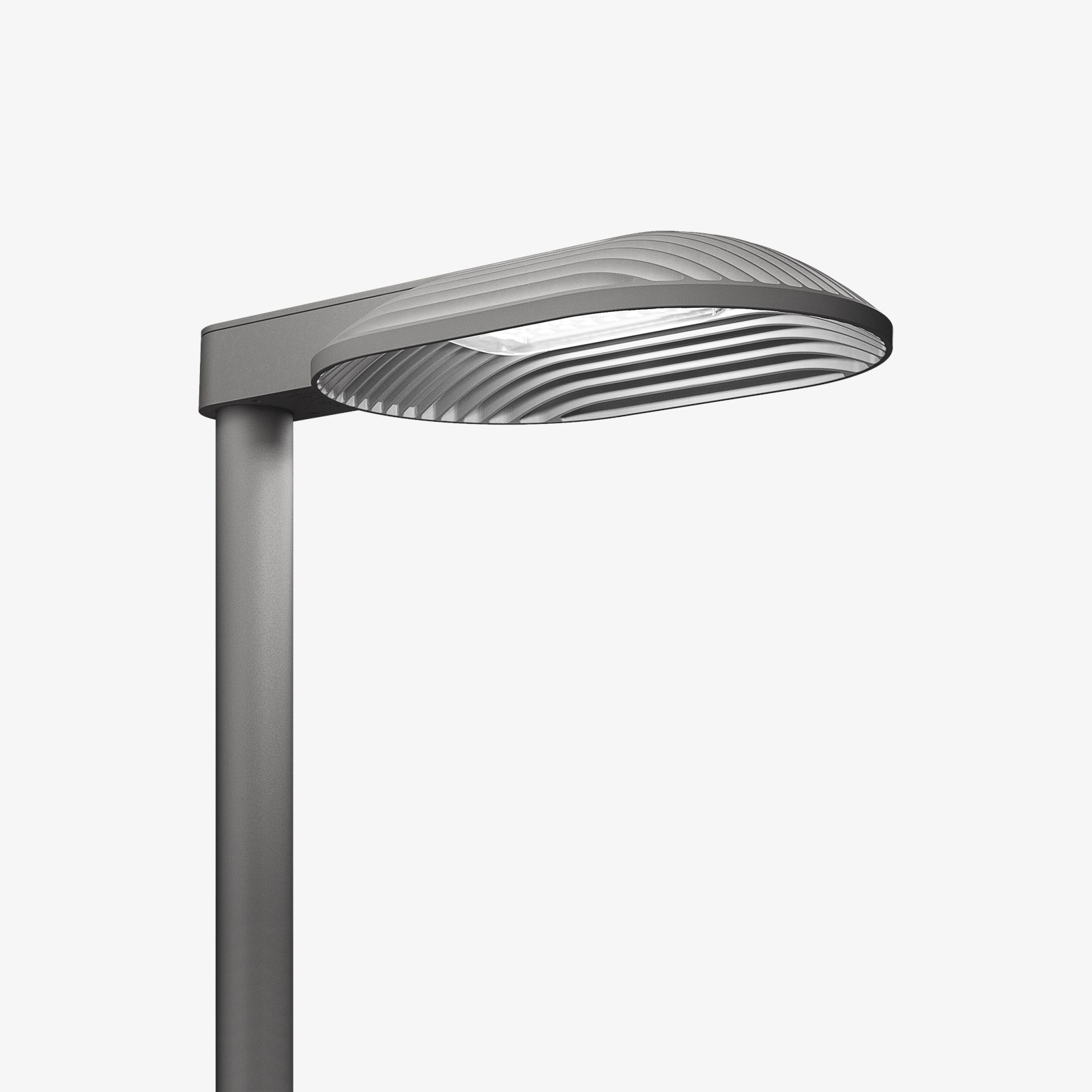

The fixture provides direct downward illumination and is self-illuminating. The fixture is available in two variants – round symmetrical and asymmetrical light distribution.
Surge protection device (SPD) not included, but available on request. LED replacement kit available. Dimming options: DALI, CLO, and night time dimming (default setting: 50% power in 8 hours). All variants available with Zhaga socket for Smart City compatibility. Including CLO and night time dimming options.
Environmental Product Specification
This product is compliant with the requirements contained in the European Directives, RoHS Directive 2011/65 and 2015/863. This product is designed so that 100% of the product can be disassembled and reused.
Finish
Aluminium coloured with textured surface, powder coated.
Class
Electric shock protection I w. ground, II w/o ground. IK class 10. IP class 66.
Materials
Lower shade: Injection moulded clear polycarbonate. Housing die-cast aluminium.
Light source
Light source LED 3000K 33W
Lumen: 3702
Mounting
Pole dimension: Ø 60mm or Ø 76mm. Transition piece available for pole Ø 115mm. Installation cable: 9m 5x1,5mm² DAC (Class I), 9m 4x1,5mm² DAC (Class II), 9m 3x1,5mm² DPC (Class I), 9m 4x1,5mm² DPC (Class II). Terminal block: 1x5x2.5mm² (Class I) or 1x4x2.5mm² (Class II). Terminal block positioning: In fixture head. LED Driver: In fixture head.

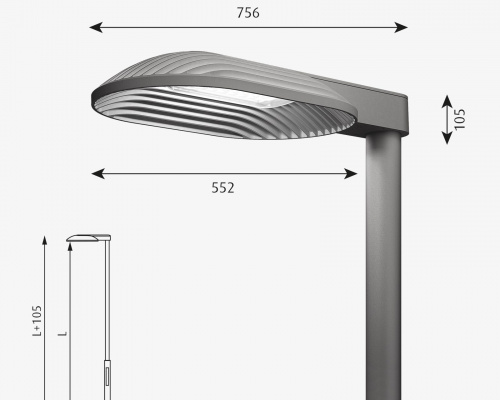

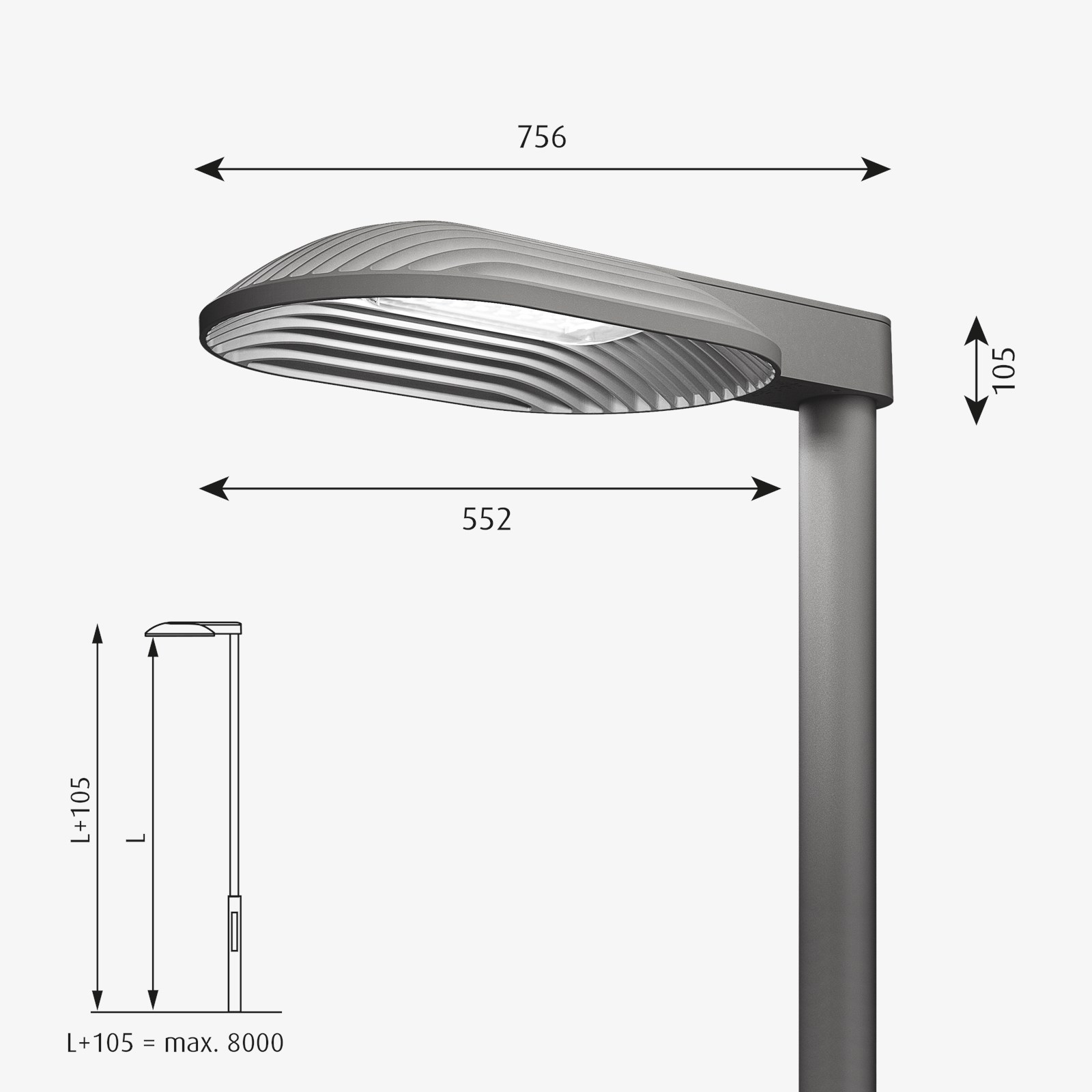

Sizes and weights
Width x Height x Length (mm)
350 x 105 x 756 Max 10.4 kg
350 x 105 x 863 Max 12.0 kg
