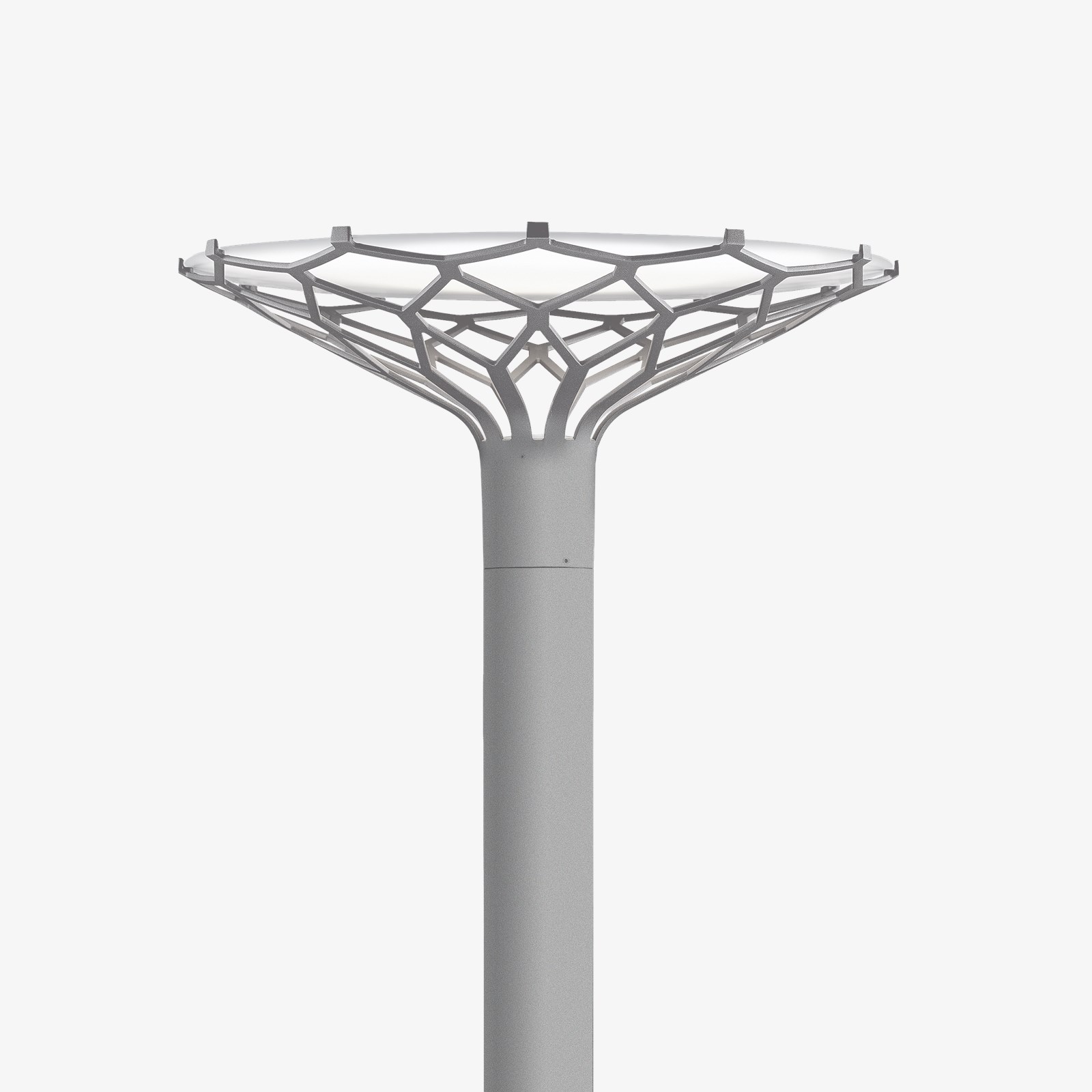

The fixture emits an indirect, soft and symmetrical light. Reflections in the “lattice” create an attractive play of light within the fixture.
Poles must be ordered separately. Mounting for pole Ø 115. For LED replacement kit please do contact Louis Poulsen. Dimming options CLO, and night time dimming (default setting: 50% power in 8 hours). All variants available with Zhaga socket for Smart City compatibility. Including CLO and night time dimming options. Driver: Location in the post top.
Environmental Product Specification
This product is compliant with the requirements contained in the European Directives, RoHS Directive 2011/65 and 2015/863. This product is designed so that 100% of the product can be disassembled and reused.
Finish
Aluminium coloured with textured surface or graphite with textured surface, powder coated.
Class
Ingress protection IP66. Electric shock protection I w. ground, II w/o ground. IK09.
Materials
Frame/Louvre: High pressure moulded aluminium. Top shade: Spun aluminium. Reflector: Anodised aluminium. Enclosure: Clear glass.
Light source
Light source LED 3000K 34W
Lumen: 2842
Mounting
Pole dimension: Ø 115mm Installation cable: 5m, 5x1mm2 (Class I) or 5m, 4x1mm2 (Class II). Driver: Location in the post top.

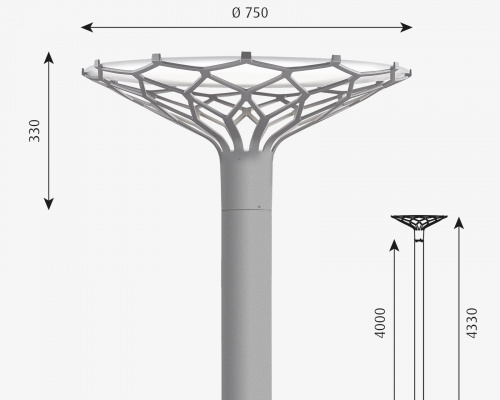

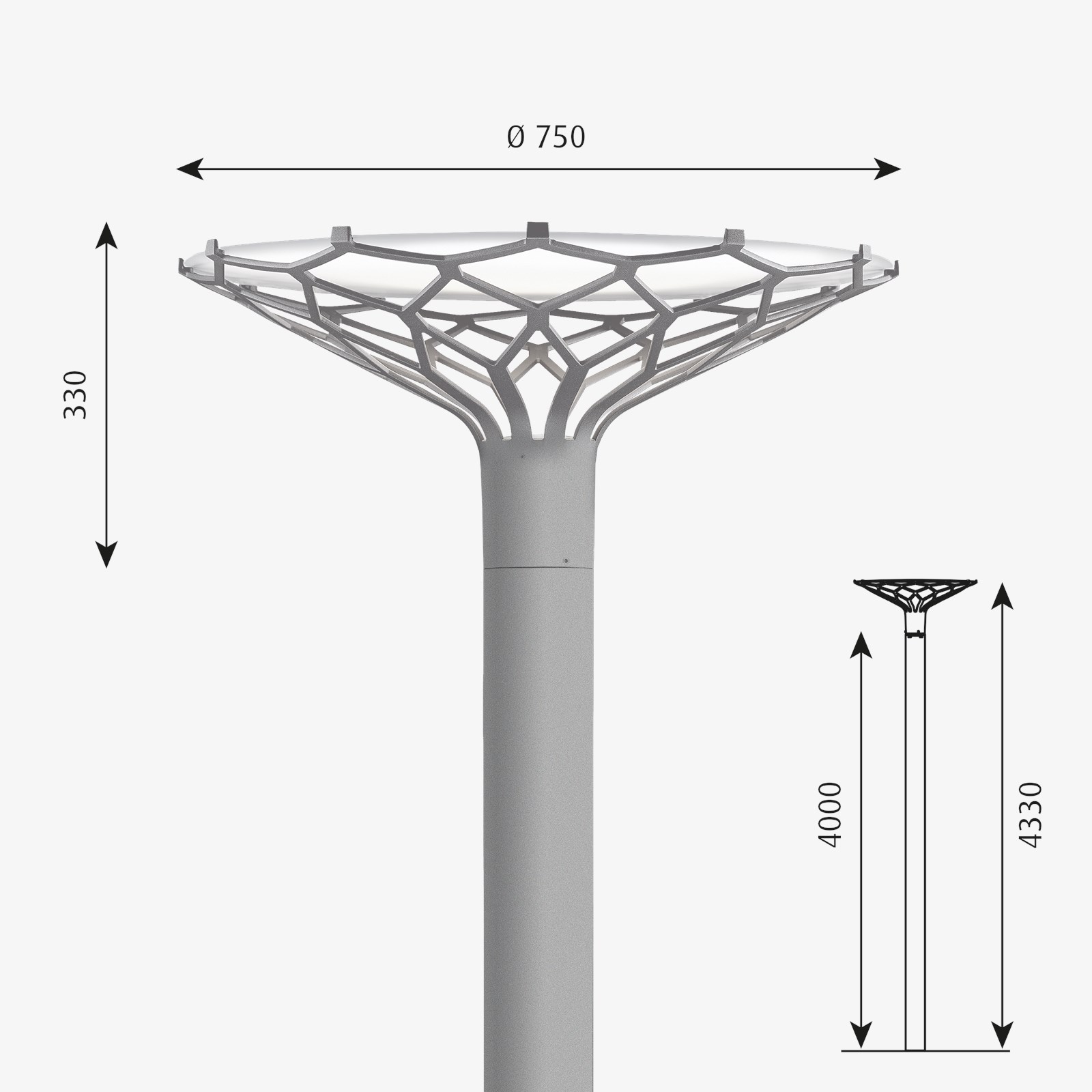

Sizes and weights
Width x Height x Length (mm)
750 x 330 x 750 Max 12.1 kg
